Product Description:
A sophisticated permanent magnet mechanism or a compact, highly reliable spring mechanism can be used as the operating mechanism of the circuit breaker. The outdoor vacuum circuit breaker uses solid sealing technology and an external silicone rubber sleeve for insulation. It is highly reliable and has a long lifespan.

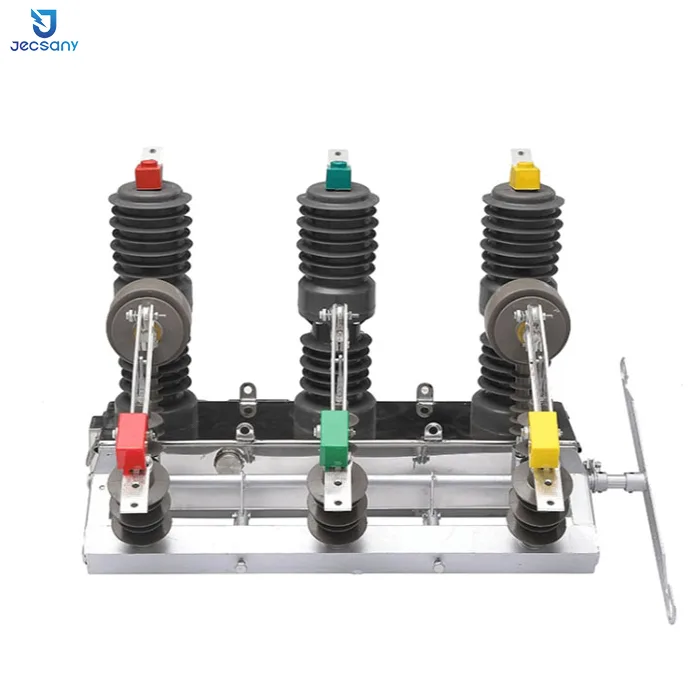

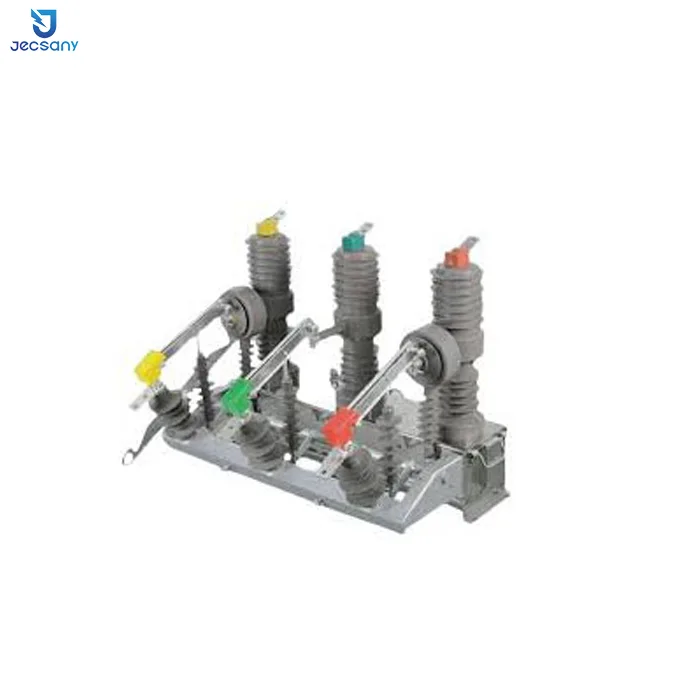

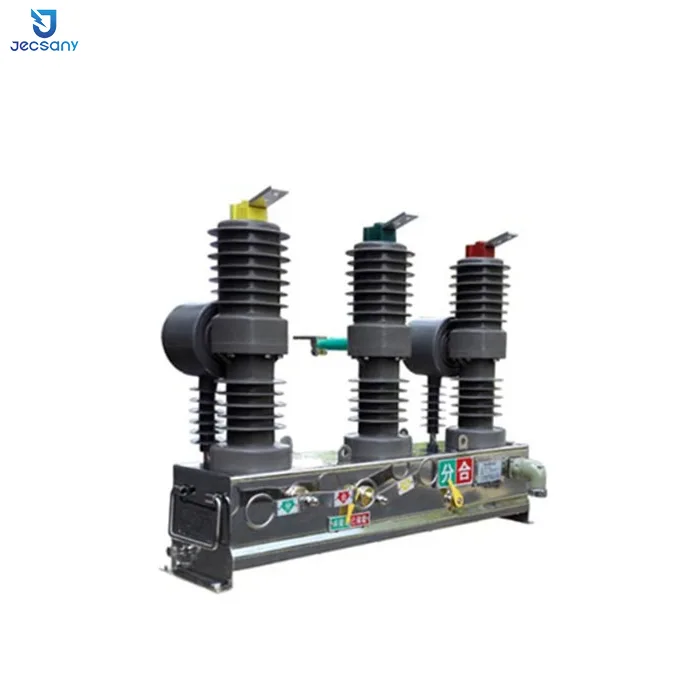

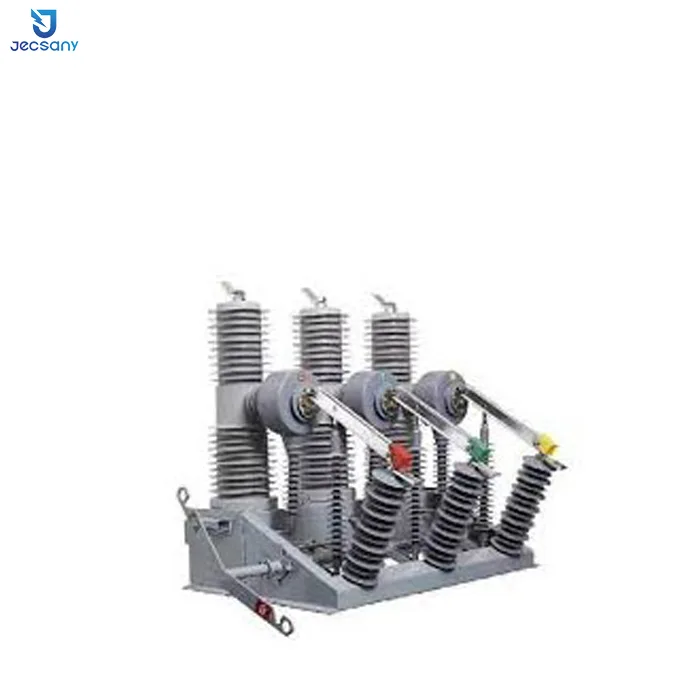

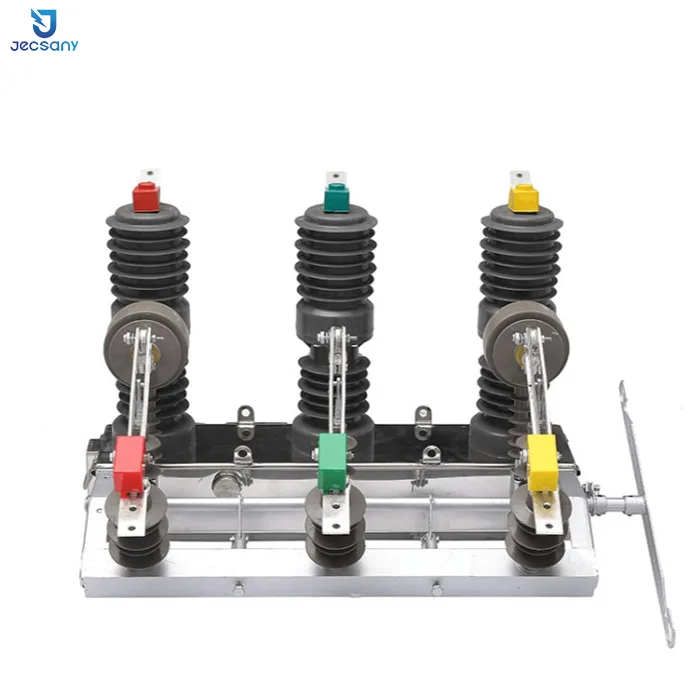

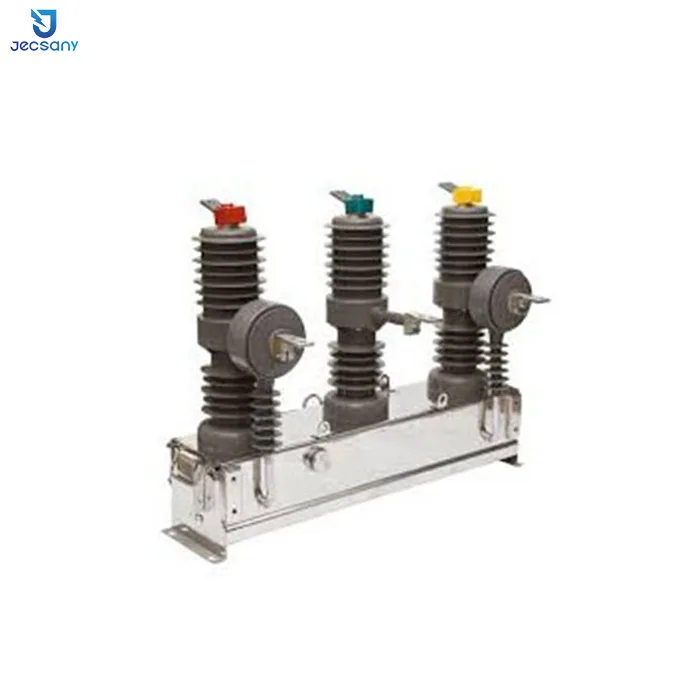

Outdoor Vacuum Circuit Breaker ZW43-12 Series outdoor high voltage vacuum circuit breaker is rated voltage 24kV, three phase AC 50Hz outdoor distribution equipment. Mainly used for breaking, closing power system load current, overload current and short-circuit current. Applicable to substations and power distribution in industrial and mining enterprises for protection and control purposes, and frequent operation place for rural power grids.
Product Parameter (Specification)
| Type | Unit | Parameters |
| Rated voltage | KV | 12 |
| Rated frequency | HZ | 50/60 |
| Rated current | A | 630/1250 |
| Rated short-circuit breaking current | kA | 20/25 |
| Rated peak value withstand current(peak) | kA | 50/63 |
| Rated short time withstand current | kA | 20/25 |
| Rated short-circuit closing current (peak) | kA | 50/63 |
| Mechanical life | TIMES | 10000 |
| Rated short-circuit breaking current breaking number | TIMES | 30 |
| Power frequency withstand voltages (1 min), wet/dry: inter-phase, earth, fracture | KV | 65/79 |
| Lightning impulse withstand voltage (peak) inter-phase ,earth, fracture | KV | 125/145 |
| Rated operate sequence | O-0.3-CO-180S-CO | |
| Secondary circuit 1min power frequency voltages | KV | 2 |
Service environment conditions:
a)mbient Air Temperature: +45ºC ~ -45ºC
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level (Maximum installation altitude): not more than 2500 meters.
d) Ambient air should be not apparently polluted by corrosive and flammable gas, vapor etc.
e) The wind speed is not greater than 35m/s.
f ) Anti-contamination level for grade IV
g) The earthquake intensity does not exceed 8 degrees.
Packaging：
Standard wooden carton, Or based on your demands.
