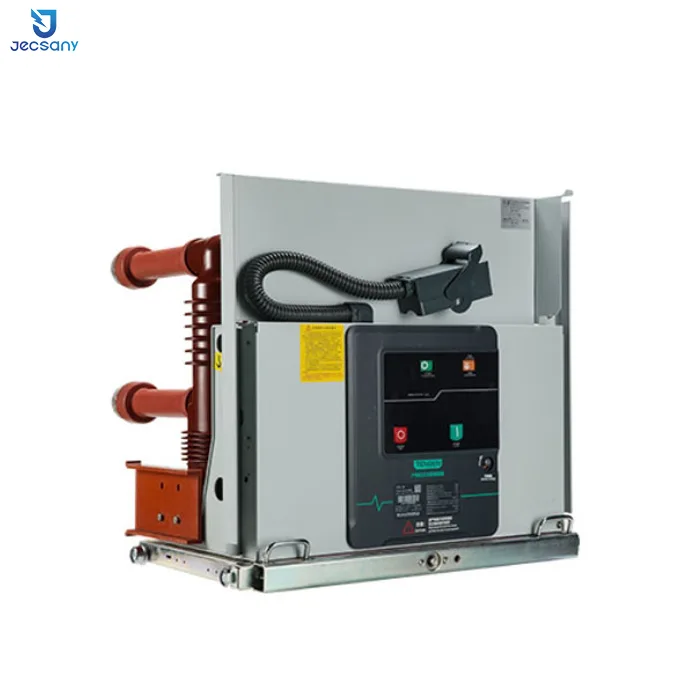

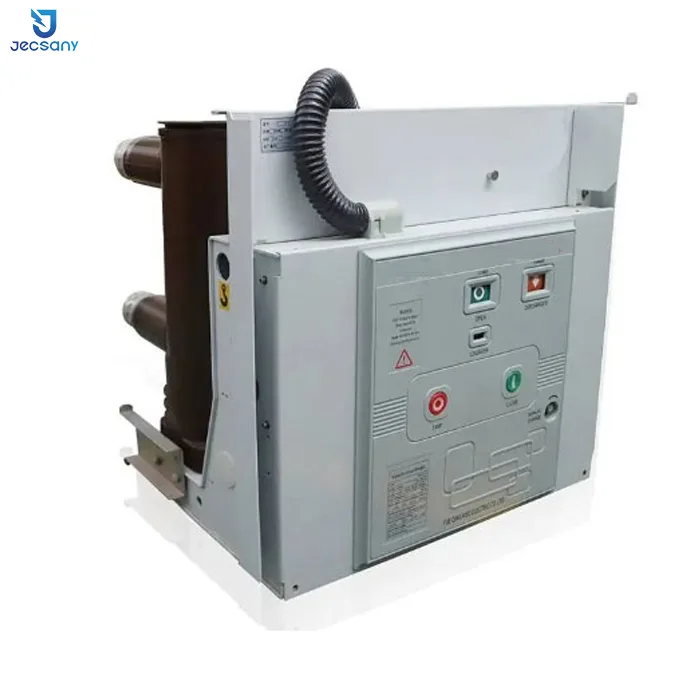

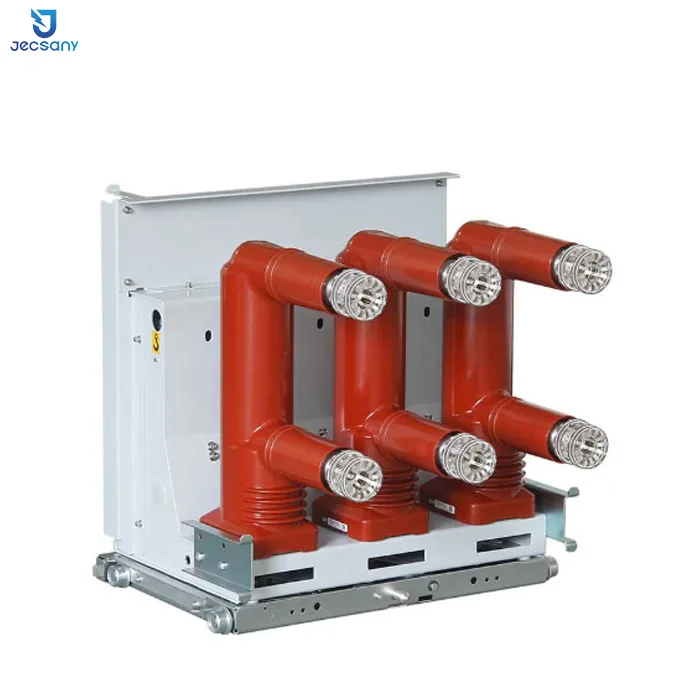

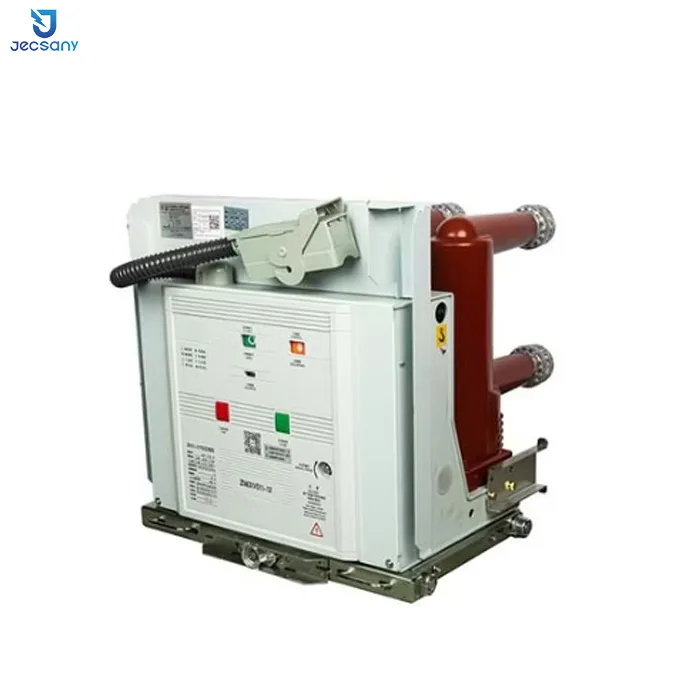

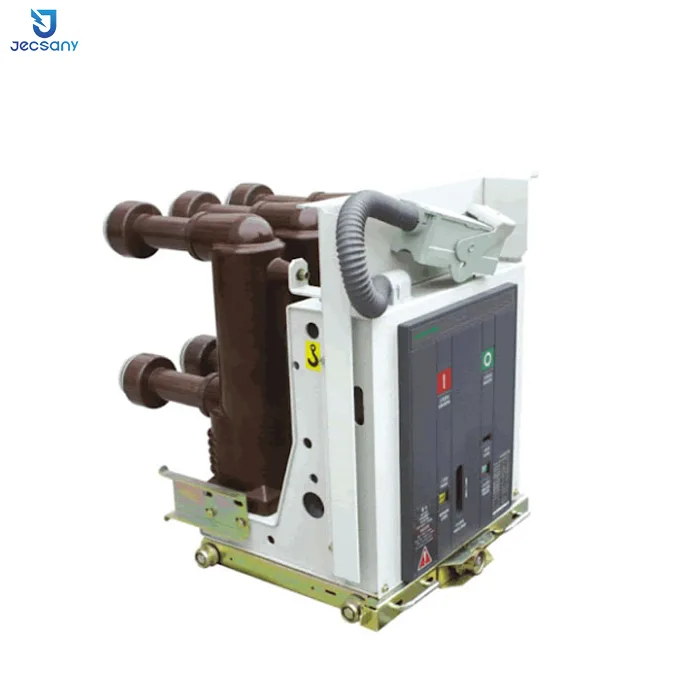

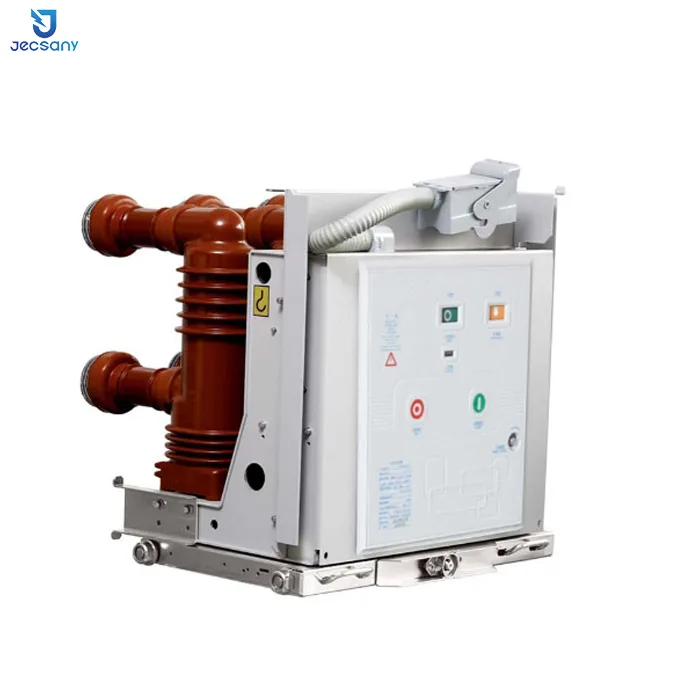

ZN63(VS1) indoor high-voltage alteratingcurrent vacuum circuit breaker has a frequency of 50Hz and a rated voltage of 12kV. It applies to the ecrical equipment control and protection in industial and mining enterprises, power plants and substations, priculanty to the places needing frequent operation. It can be fixed in a switch cabinet or nstalld on a handcart.
Product Description:
ZN63(VS1) indoor high-voltage alteratingcurrent vacuum circuit breaker has a frequency of 50Hz and a rated voltage of 12kV. It applies to the ecrical equipment control and protection in industial and mining enterprises, power plants and substations, priculanty to the places needing frequent operation. It can be fixed in a switch cabinet or nstalld on a handcart.
With stable performance and convenient intallation, it is the best choice for the control and protection of hig-voltage power transmission and distribution systems.
Product Parameter (Specification)
| Item | Unit | Parameters | ||
| Rated Voltage | KV | 12 | ||
| Rated Current | A | 630-3150 | ||
| Rated short- circuit breaking current | KA | 20 | 31.5 | 40 |
| Rated short- circuit closing current | KA | 50 | 80 | 100 |
| Rated dynamic steady electric current(peak) | KA | 50 | 80 | 100 |
| Rated thermal stability current(RMS) | KA | 20 | 31.5 | 40 |
| Rated thermal stability time | S | 4 | ||
| The breaking times of rated short circuit breaking current | Times | 30 (50) | ||
| Open time of CD10 electromagnetic operating mechanism | mS | < 80 | ||
| Rated operating sequence | O-0.3s-CO- 180s-CO | |||
| A minute power frequency withstand voltage(RMS) | KV | The phase 42, section 48 | ||
| Lightning shock pressure | KV | The phase 75, section 85 | ||
| Mechanical life | Times | 10000 | ||
| Note: 20KA,31.5KA t=0.3s t 1= 180s 40KA t=180s t 1= 180s | ||||
Packaging：
