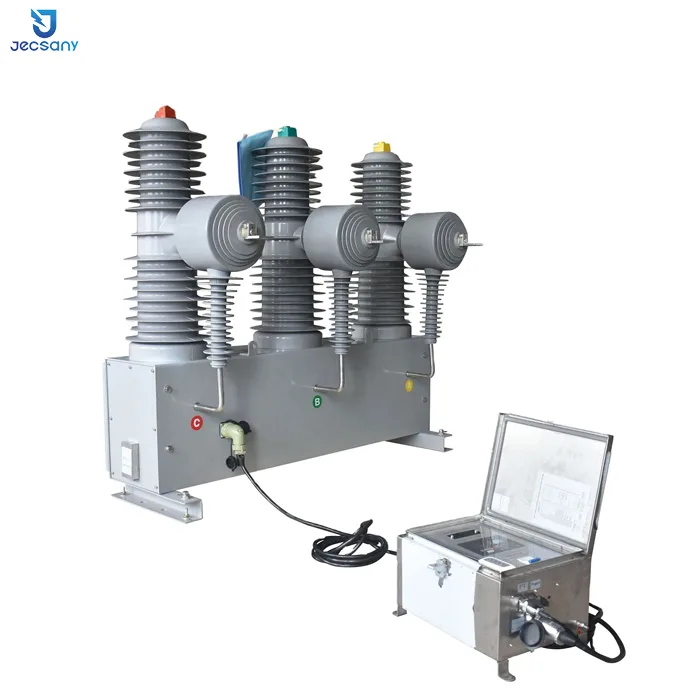

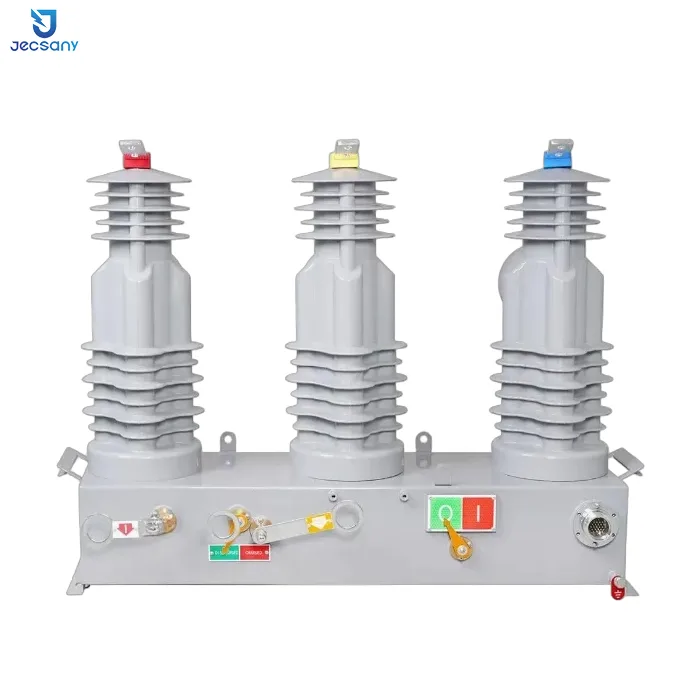

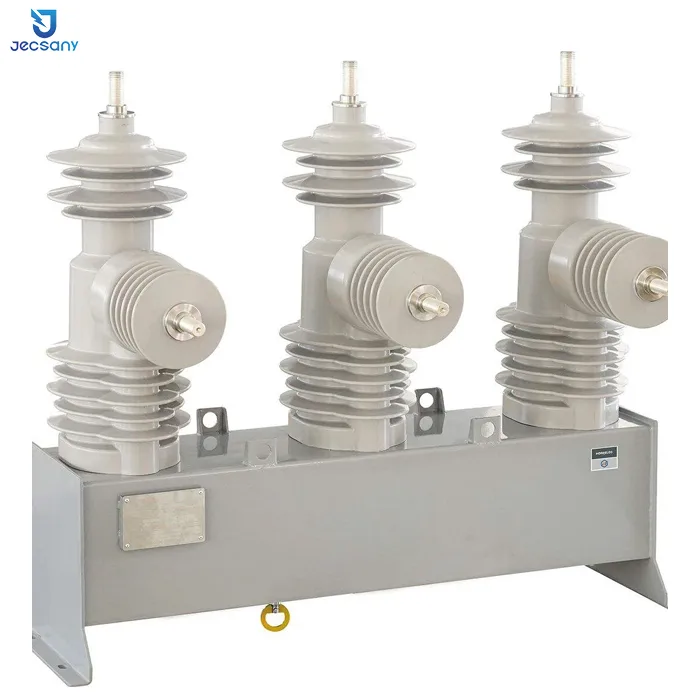

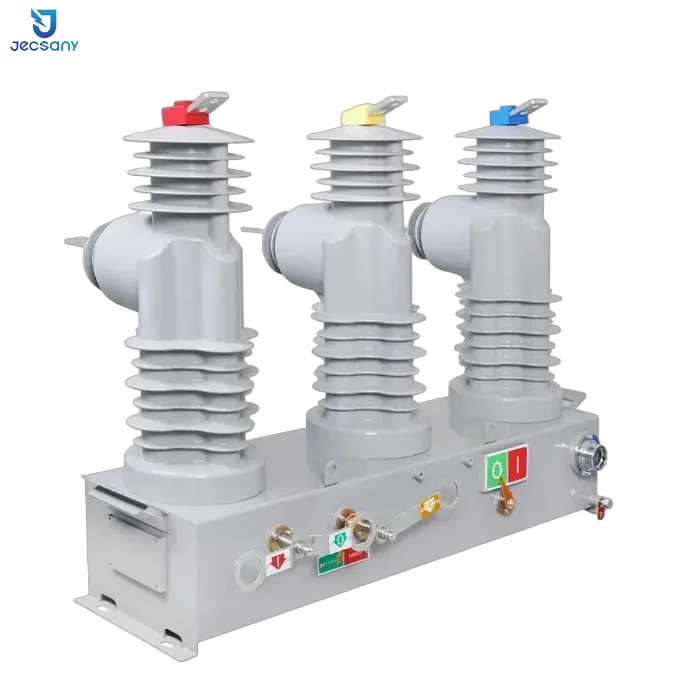

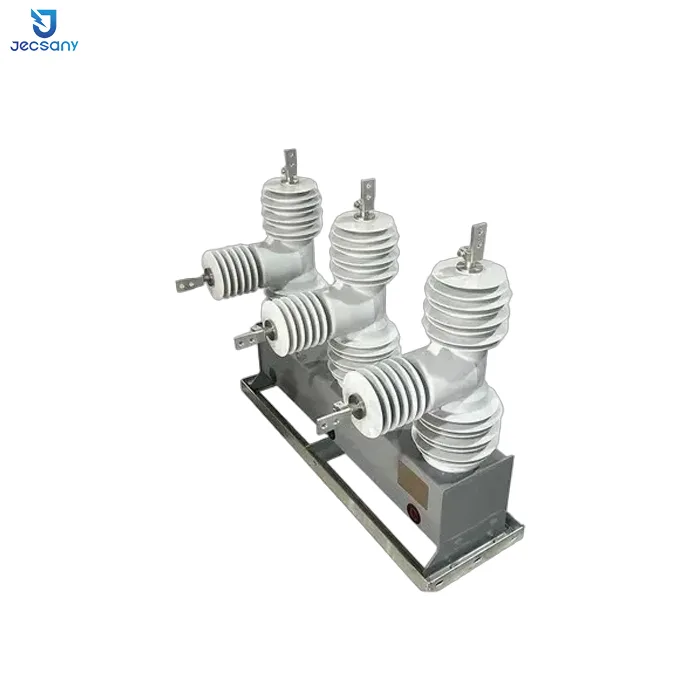

The Zw15-38kV Automatic Outdoor Vacuum Circuit Breaker (Auto Recloser) integrates vacuum interruption technology with automatic reclosing functionality, delivering high breaking capacity, reliable operation, and maintenance-free performance for medium-voltage power grids (10-40.5kV), serving as a critical protection and control solution for outdoor power systems.
Product Description:
Designed for harsh outdoor environments, the Zw15-38kV Automatic Outdoor Vacuum Circuit Breaker (Auto Recloser) leverages advanced vacuum interrupter technology and a rugged stainless steel enclosure to ensure exceptional electrical endurance, weather resistance, and corrosion protection. Equipped with intelligent automatic reclosing capabilities, it efficiently restores power supply after transient faults, minimizing downtime for power plants, substations, industrial facilities, and distribution networks. Compliant with international electrical standards, this medium-voltage (38kV) circuit breaker features a magnetic actuator design with fewer moving parts, enabling 10,000 rated full-load operations while eliminating the need for oil or gas insulation—making it environmentally friendly, safe, and cost-effective for long-term service. Its separately housed electronic controls also allow convenient maintenance without aerial access equipment, enhancing operational safety and efficiency.
Product Parameter (Specification)
| Model | Rated Continuous Current (Ir) | Rated Short-circuit Duration (Ts) | Rated Short-circuit Breaking Current (Isc) | Rated Short-circuit Making Current (Ima) | Rated Lightning Impulse Withstand Voltage (Up) | Rated Short-time Withstand Voltage (Ud) | Impedance Between Connections (uΩ) | Creepage Distance (phase-to-phase) | Clearance (phase-to-phase) | Minimum Clearance (phase-to-earth) | Weight | Line Charging Current | Cable Charging Current | Max Interrupting/Closing Time |
| ZW15-630-12-M | 630 | 3 | 12.5 | 31.5 | 110 | 50 | 60 | 850 | 340 | 270 | 130 | 2 | 10 | 40/60 |
| ZW15-800-12-M | 800 | 3 | 12.5 | 31.5 | 110 | 50 | 60 | 850 | 340 | 270 | 130 | 2 | 10 | 40/60 |
| ZW15-630-16-M | 630 | 3 | 16 | 40 | 110 | 50 | 60 | 850 | 340 | 270 | 130 | 2 | 10 | 40/60 |
| ZW15-800-16-M | 800 | 3 | 16 | 40 | 110 | 50 | 60 | 850 | 380 | 270 | 130 | 5 | 25 | 40/60 |
| ZW27-630-12-M | 630 | 3 | 12.5 | 31.5 | 125 | 60 | 60 | 850 | 380 | 270 | 130 | 5 | 25 | 40/60 |
| ZW27-800-12-M | 800 | 3 | 12.5 | 31.5 | 170 | 70 | 60 | 850 | 380 | 270 | 130 | 5 | 25 | 40/60 |
| ZW27-630-16-M | 630 | 3 | 16 | 40 | 125 | 60 | 60 | 850 | 380 | 270 | 130 | 5 | 25 | 40/60 |
| ZW27-800-16-M | 800 | 3 | 16 | 40 | 170 | 70 | 60 | 850 | 380 | 270 | 130 | 5 | 25 | 40/60 |
| ZW38-630-12-M | 630 | 3 | 12.5 | 31.5 | 170 | 70 | 60 | 1290 | 395 | 350 | 150 | 5 | 40 | 40/60 |
| ZW38-800-12-M | 800 | 3 | 12.5 | 31.5 | 170 | 70 | 60 | 1290 | 395 | 350 | 150 | 5 | 40 | 40/60 |
| ZW38-630-16-M | 630 | 3 | 16 | 40 | 170 | 70 | 60 | 1290 | 395 | 350 | 150 | 5 | 40 | 40/60 |
| ZW38-800-16-M | 800 | 3 | 16 | 40 | 170 | 70 | 60 | 1290 | 395 | 350 | 150 | 5 | 40 | 40/60 |
Product Features：

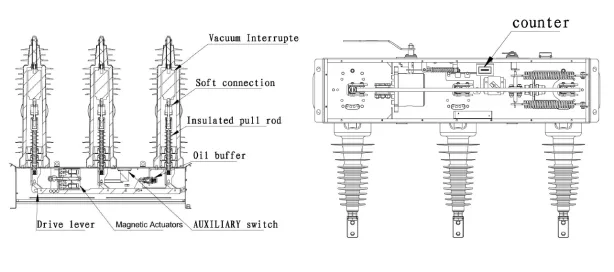

* Magnetic actuators and superior design allow reclosers to operate for a rated 10,000 full load operations
* Less moving parts = less maintenance = fewer operator injuries
* Magnetic actuator = no mechanically charged components for added safety
* No oil or gas insulation = environmentally friendly products stainless steel
* Stainless steel cabinets ensure the best weathering/corrosion performance

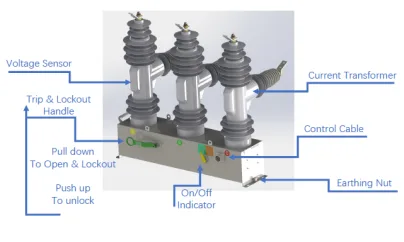

* For added safety, separately housed electronic controls can be accessed without using bucket trucks or climbing poles
Packaging：
Normal package, Packed in Roll, Plastic film winding, Standard export carton, Or based on your demands.
